Use File Image

UseFileImage is a sandbox setting in Sandboxie Ini (introduced in v1.11.0 / 5.66.0) that replaces the standard file system storage with a file-backed virtual disk image as the sandbox root directory.

Warning

Configure this setting on a per-sandbox basis. Applying it globally will force all sandboxes to use file images, which may break existing sandboxes that rely on standard file system storage or cause compatibility issues with non-encrypted sandbox configurations.

Note

This setting requires an active advanced supporter certificate.

Prerequisites

  • Install the ImDisk Toolkit via the Add-Ons Manager > Optional Add-Ons tab in Global Settings.

    ImDisk Install

Usage

[DefaultBox]

UseFileImage=y

When this setting is enabled, the Sandboxie service creates a virtual disk image file with extension .box. The image file path is determined by the service1 which appends .box to the sandbox's file root2 path. The sandbox file system is then mounted from this image using the ImDisk virtual disk driver through the mount manager3. All file I/O operations within the sandbox are redirected to the mounted image rather than creating files directly on the host file system.

Password protection and header backup/restore operations are available through the SandMan GUI or the ImBox command-line utility.

SandMan GUI

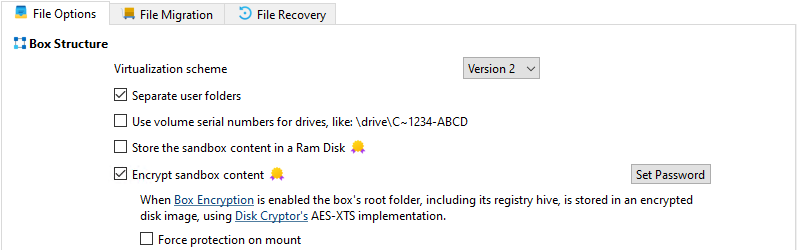

Setting Password

  1. Right-click on the sandbox in SandMan > Sandbox Options.
  2. Navigate to File Options tab.
  3. Enable the Encrypt sandbox content.
  4. (Optional) Enable the Force protection on mount

  5. Click the Set Password button.

    Setting Password 1

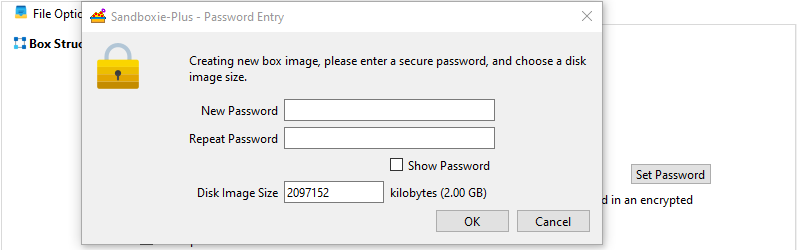

  6. Enter and confirm password in the dialog.

    Setting Password 2

Changing Password

  1. Right-click on the sandbox in SandMan > Sandbox Options.
  2. Navigate to File Options tab.

  3. Click the Change Password button.

    Changing Password 1

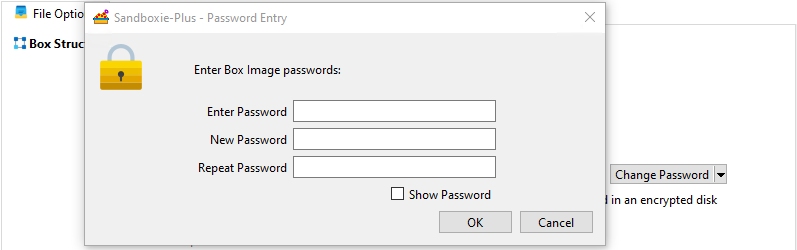

  4. Enter current password in the dialog.

    Changing Password 2

  5. Enter new password and confirm password in the dialog.

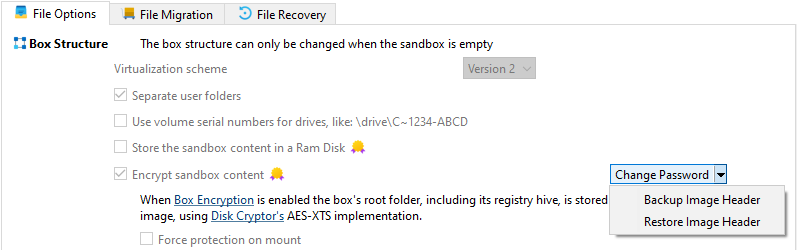

Header Backup

  1. In sandbox options File Options tab.
  2. Click the down arrow next to Change Password button.

  3. Select Backup Header from dropdown menu.

    Header Backup

  4. Choose location to save .hdr file.

  5. Header is exported using ImBox utility4.

Header Restore

  1. In sandbox options File Options tab.
  2. Click the down arrow next to Change Password button.

  3. Select Restore Header from dropdown menu.

    Header Restore

  4. Select previously saved .hdr file.

  5. Header is imported using ImBox utility4.

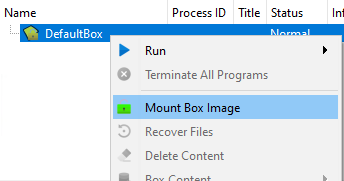

Mounting Box Image

  1. Right-click on the sandbox in SandMan.

  2. Select Mount Box Image from the context menu.

    Mount Box Image 1

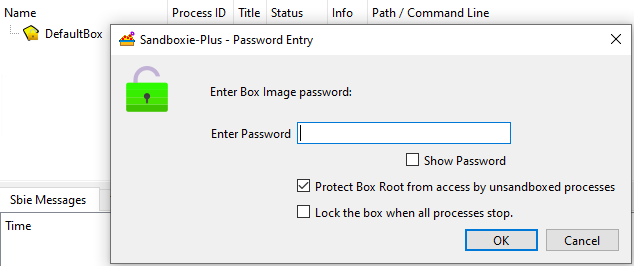

  3. Enter the password when prompted.

    Mount Box Image 2

    • (Optional) Enable Protect Box Root from access by unsandboxed processes to prevent unsandboxed programs from accessing the encrypted sandbox content.

    • (Optional) Enable Lock the box when all processes stop to automatically unmount the image when the last sandboxed program terminates.

Note

The image is automatically mounted when starting any program from the sandbox via the UI.

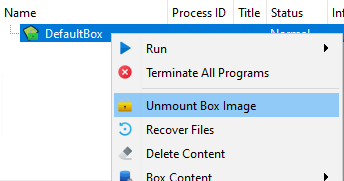

Unmounting Box Image

  1. Right-click on the sandbox in SandMan.

    Mount Box Image 2

  2. Select Unmount Box Image from the context menu.

Warning

Unmounting the image will terminate all running programs within the sandbox.

Best Practices

  • Manually close programs before unmounting when possible.
  • Ensure no critical processes are running in the sandbox.

Command Line Operations

  • Using ImBox.exe for advanced image management:
# Backup header
ImBox.exe type=image image="C:\Sandbox\DefaultBox.box" backup="C:\Sandbox\backup.hdr"

# Restore header
ImBox.exe type=image image="C:\Sandbox\DefaultBox.box" restore="C:\Sandbox\backup.hdr"

Image mounting is handled by the service which verifies driver capabilities before attempting to mount the virtual disk. If the driver does not support encrypted containers or mounting fails, the sandbox will not start and an error is logged.

Technical Notes

  • Requires ImDisk driver support for encrypted image containers.
  • Mutually exclusive with UseRamDisk.
  • Header corruption can render encrypted images unrecoverable - always maintain header backups.
  • Maximum image size limited by available disk space and driver constraints.
  • Command-line mounting operations handled by Start.exe with mount and mount_protected switches5.

Related Sandboxie Ini, ForceProtectionOnMount, UseRamDisk, FileRootPath, StartCommandLine

  1. MountManager::GetImageFileName - determines image file path. ↩

  2. File root is the base directory where sandbox files are stored, configured via FileRootPath setting. ↩

  3. MountManager::AcquireBoxRoot - handles image mounting process. ↩

  4. GUI operations implemented in COptionsWindow::OnSetPassword, COptionsWindow::OnBackupHeader, and COptionsWindow::OnRestoreHeader. ↩↩

  5. Command-line mounting switches implemented in Sandboxie\apps\start\Start.cpp - mount and mount_protected parameters for programmatic image mounting operations. ↩
